America’s electric power grid is subject to immense inefficiencies that arise from the interplay between centralized power generation, local power consumption and on demand utility service.

Smart Grid's Enabler

By John Petersen, Reprinted from Seeking Alpha with Permission

To put things into a broad perspective, the nameplate capacity of U.S. generating facilities is about 1 million Megawatts (MW), so if all of our power plants ran 24/7 we would have a theoretical annual generating capacity of 8.7 billion Megawatt-hours (MWh). Since demand for electricity fluctuates on both a daily and seasonal basis, total electric power generation in 2007 was only 4.2 billion MWh, or less than 50% of nameplate capacity. The goal of the Smart Grid is to maximize the efficiency of existing generating facilities and accommodate the integration of renewable power resources. Since many better-qualified authors are writing volumes about transmission and distribution, demand management and renewable power technologies, I’ll limit this article to manufactured energy storage devices; enabling technologies that will be the beating heart of the Smart Grid for the next 10 to 20 years.

Last August I wrote Grid-based Energy Storage: Birth of a Giant, an introductory article that offered an overview of the potential uses for energy storage systems in the electric grid. At the time I confessed that the subject matter was a bit out of my depth, a problem that was compounded by a dearth of third-party analysis on specific applications. Mercifully, all that changed in December 2008 when the Department of Energy’s Electric Advisory Committee (EAC) published two reports that are must reads for investors that want to understand how the Smart Grid will develop, and position their investment portfolios to profit from cleantech, the sixth industrial revolution.

The first EAC report, “Smart Grid: Enabler of the New Energy Economy,” explains how the Smart Grid will use advanced technology to transform the energy production and distribution system into a more intelligent, resilient, reliable, self-balancing, and interactive network that enables enhanced economic growth, environmental stewardship, operational efficiencies, energy security, and consumer choice. The companion report, “Bottling Electricity: Storage as a Strategic Tool for Managing Variability and Capacity in the Modern Grid,” explains why the evolution of the Smart Grid will depend on cost effective energy storage, particularly in the early stages, while other distribution and demand management solutions are being developed, adopted and implemented. This report divides Smart Grid energy storage applications into three functional classes: generation; transmission and distribution; and end-user, and then provides thumbnail descriptions of each potential energy storage application. Since my goal is to encourage readers to download and study the EAC reports and other source documents, this article will use summary tables to identify the major application classes and the existing and emerging manufactured energy storage devices that are expected to be useful in those applications.

I’ll apologize up front for giving short shrift to pumped hydro and compressed air energy storage. Both are highly efficient for storing massive amounts of energy and both are subject to physical and environmental constraints that limit where facilities can be built. More importantly, there are no pure-play public companies that focus on either storage technology, so spending a lot of time discussing cool technologies that you can’t invest in seems futile.

One of the most important concepts in any discussion of grid-based energy storage is discharge duration; or the optimal time required for a particular device to release its stored energy. Some grid-based applications require discharge durations measured in hours, others require discharge durations measured in minutes and still others require discharge durations measured in seconds. In general, manufactured energy storage devices that can store large amounts of energy are not good at discharging the stored energy quickly. Likewise, manufactured energy storage devices that can discharge energy quickly do not generally store large amounts of energy. Since the big challenge for utilities is to only provide slightly more power than customers need at any particular moment in time, they have to focus on peaks and valleys, rather than the averages. That's why a comprehensive solution will require a multi-pronged approach that uses a variety of manufactured energy storage devices to meet particular needs.

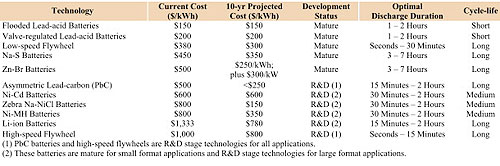

The core data in the following table comes from a July 2008 Sandia National Laboratories report on its Solar Energy Grid Integration Systems – Energy Storage (SEGIS-ES) program. While the original Sandia table focused on the current and projected capital costs for manufactured energy storage devices that can be used in solar power projects, the basic cost structure applies to all Smart Grid applications. Since the EAC’s Bottling Electricity report states that the principal purchase decision metrics in Smart Grid applications will be installed cost, reliability, discharge duration and cycle life, I’ve reordered the Sandia data to create a cost hierarchy and provide summary information for each type of storage device. More detailed information on the advantages, disadvantages, commercial status, current research and development and potential applications for each type of manufactured energy storage device can be found in the SEGIS report.

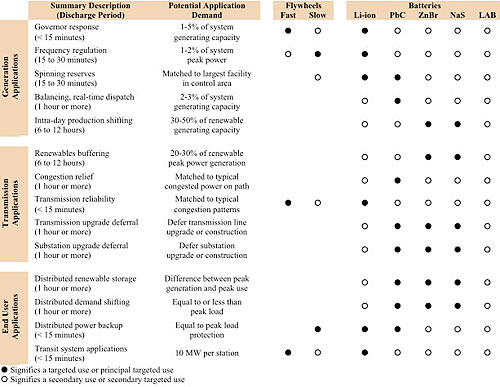

The following table is my attempt to integrate the cost and performance data from the SEGIS report with the Smart Grid application information in the EAC’s energy storage report. My goal is to identify the principal technologies that might be useful in each application and highlight the technologies that seem most likely to prove cost-effective. Since the EAC’s report highlights the need for substantial additional research, development and testing to better identify the optimal technology choices, the table is only one man’s informed view through a cloudy crystal ball.

At first blush, the percentages of generating capacity that could be satisfied by energy storage systems seem pretty modest, a mere couple of percentage points here and there with higher margins for alternative power installations. But those tiny percentages become massive potential revenue numbers when you consider that the capital cost of energy storage installations ranges from $150,000 to $1.3 million per MWh. Since the principal competitors in the energy storage sector are small compared with similarly positioned companies in other sectors, I believe energy storage is likely to be a veritable investment tsunami that will offer extraordinary returns.

Most of the buzz in the alternative energy sector focuses on renewable power, demand management technology, advanced power transmission systems and batteries for electric vehicles. In the process, the media has largely overlooked the reality that energy storage devices are essential enabling technologies for both transportation and the Smart Grid. A number of analysts are predicting that annual global demand for energy storage devices could grow from $25 billion to $100 billion over the next decade. Most estimates of future growth in the automotive market talk about battery sales in the $15 to $20 billion range. The much larger growth will come from using energy storage technologies to support the development and evolution of the Smart Grid. While size and weight may matter when it comes to automotive applications, they will be meaningless in grid-based applications whereinstalled cost, reliability, discharge duration and cycle life are the critical metrics.

There are two pure-play public companies in the flywheel sector. Active Power (ACPW) manufactures systems that use low-speed flywheel technology to provide backup power for server farms and a wide variety of commercial and industrial installations. Since Active Power’s technology is modular, scaling systems to provide Smart Grid support should be relatively simple and I expect Active Power to be an early beneficiary of the trend toward grid-based energy storage. Beacon Power (BCON) has recently begun field-testing of utility scale governor response and frequency regulation systems. While Beacon will likely require a couple years of testing before utilities are willing to commence wide-scale implementation of Beacon’s technology, its stock offers significant long-term potential.

There are five pure-play public companies in the advanced lead acid battery group including Exide Technologies (XIDE), Enersys (ENS), C&D Technologies (CHP), Ultralife Batteries (ULBI) and Axion Power International (AXPW.OB). Each of these companies has proven products that can be rapidly integrated into storage systems for the Smart Grid. Moreover, Axion’s pioneering work on lead-carbon devices promises a level of performance, power and cycle-life durability that has not previously existed in the lead-acid world. In addition to its activities in the transportation sector that have resulted in a couple of significant grants, Axion is involved in two utility scale demonstration projects. Since lead-acid is frequently perceived as old-tech, the group trades at a significant discount to comparable companies that focus on other advanced battery technologies. I believe the market valuation metrics will normalize as the Smart Grid opportunities become more widely understood.

There are three pure-play public companies in the lithium ion group that have expressed an interest in the Smart Grid market. Altair Nanotechnologies (ALTI) has shipped a utility scale frequency regulation system for testing and both Ener1 (HEV) and Valence Technologies (VLNC) have taken preliminary steps to evaluate the potential for using their technologies in utility scale applications. Since size and weight are not mission critical issues in utility scale installations, I expect the cost of Li-ion technology to be a significant impediment. However, there are limited Smart Grid applications like frequency regulation that could benefit from extreme high performance batteries.

The only pure-play public company actively involved in the commercialization of Zinc-Bromine flow batteries is ZBB Energy (ZBB), which has recently partnered with Eaton for the global distribution of its flow battery systems.

Foreign companies that have active plans to manufacture products for the utility sector include France’s SAFT Groupe (SGPEF.PK), which has partnered with ABB for large-format Li-ion devices, and Japan’s NGK Insulators Ltd. (NGKIF.PK).

While I am primarily concerned with the economic and business aspects of the energy storage sector, it would be naive to overlook the current political context. As of Friday afternoon, the Senate version of The American Recovery and Reinvestment Act of 2009 included the following provisions that may directly impact the sector:

    "For an additional amount for `Energy Efficiency and Renewable Energy', $14,398,000,000, for necessary expenses, to remain available until September 30, 2010: * * * Provided further, That $2,000,000,000 shall be available for grants for the manufacturing of advanced batteries and components and the Secretary shall provide facility funding awards under this section to manufacturers of advanced battery systems and vehicle batteries that are produced in the United States, including advanced lithium ion batteries, hybrid electrical systems, component manufacturers, and software designers:

    * * *

    For an additional amount for `Electricity Delivery and Energy Reliability', $4,500,000,000, for necessary expenses, to remain available until September 30, 2010:

    * * *

    For capital expenditures and necessary expenses of acquiring motor vehicles with higher fuel economy, including: hybrid vehicles; neighborhood electric vehicles; electric vehicles; and commercially-available, plug-in hybrid vehicles, $600,000,000, to remain available until September 30, 2011."

While there are any number of provisions in the legislation that have the population and the politicians up in arms, the planned Federal incentives for the battery sector seem to have broad support and are not likely to change much.

Two billion dollars in Federal grants for domestic battery manufacturing is immense. For the reasons discussed in this article, I think there’s good reason to believe that in light of the recent EAC reports, grid-based energy storage may also qualify for a portion of the $4.5 billion earmarked for Electricity Delivery and Energy Reliability. If one assumes that batteries and associated control systems will probably represent 1/4 to 1/3 of the $600 million EV acquisition appropriation and recognizes that there will be substantial pressure to ensure the funds are spent on domestically manufactured batteries, the impact on a handful of stocks could be immense.
