With Tigo’s TS4-A-O (Optimization Add-ons) units, the system complies with California’s mandated NEC 2017 rapid shutdown requirements. This customer also has module-level monitoring with full visibility into his system via Tigo SMART Website & App.

Tigo’s Integrated Optimizers in Residential Solar
Tigo’s Integrated Optimizers in Residential Solar

Case Study from | Tigo Energy

The North American residential solar market has continued to grow over the last decade – and so have the product features and regulations to accommodate this growing PV industry. Tigo meets those trends and growth by providing flexible module-level power electronics (Flex MLPE) and plug-n-play features with its TS4 Platform. For example, residential, C&I, and utility PV markets around the globe demand solutions for new and existing PV systems which is why we offer an integrated and an add-on architecture of Tigo’s TS4 Platform. Some markets require rapid shutdown which is why our products are UL-system-certified to comply with NEC 2014, 2017, and 2020. Other customers require full visibility for PV asset management which is why our products offer module-level monitoring for the most reliable visibility into production data and O&M reports.



The Project:

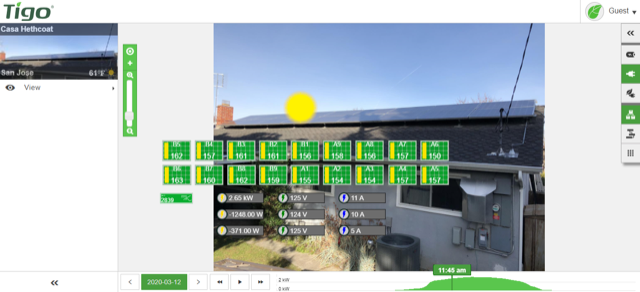

This case study shows a residential PV system owner in San Jose, California with Tigo’s integrated optimizers on his roof. He chose the add-on optimizers for his project. With Tigo’s TS4-A-O (Optimization Add-ons) units, he complies with California’s mandated NEC 2017 rapid shutdown requirements. This customer also has module-level monitoring with full visibility into his system via Tigo SMART Website & App where he can monitor production levels, reclaimed energy, and more.

View a demo of this case study site here: https://smart.tigoenergy.com/p/9jSvEb1tOkhl/system/summary/array



Solving the challenges:

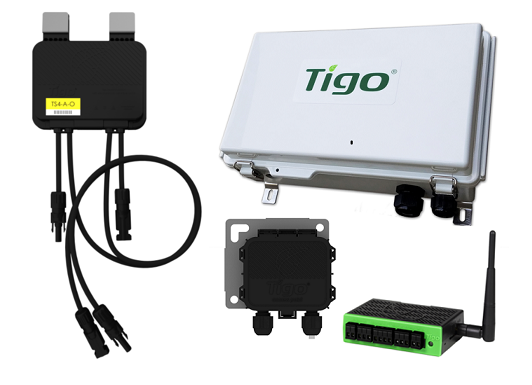

This customer chose Tigo’s optimization to mitigate the shading he gets throughout the day and year on his rooftop PV system. Neighboring trees, a chimney, and powerlines all cast shadows and affect the PV system’s production. With Tigo’s TS4-A-O (Optimization Add-ons) on the modules and Tigo’s Cloud Connect Advanced (CCA Kit) of communication accessories, this customer is able to reclaim that lost energy which we would have otherwise lost.

"My PV system was originally installed in 2009.  Adding Tigo optimizers to my system in 2017 was a big improvement!  I'm producing an average of 250 kWh more energy per year.  I am also able to see when the solar modules need cleaning, and immediately see the results of each cleaning.  I get interesting monthly reports showing which solar modules are producing the most and the least energy.  I have not had any problems with my solar modules yet, but I'm confident that if and when I do, I will be able to immediately see and correct the problem.  Like the main PV system, I expect the Tigo upgrade will more than pay for itself over the life of the system.  This retrofit upgrade also enabled NEC compliant rapid shutdown, even though the inverter wasn't designed for rapid shutdown." – Customer Testimonial

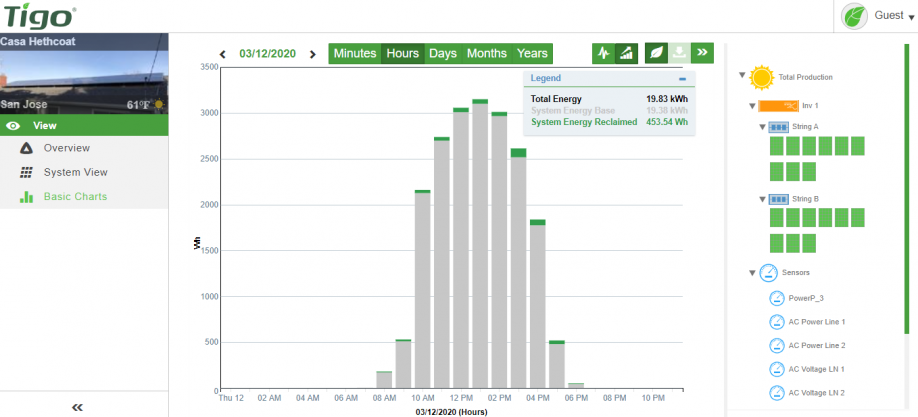

This PV system was originally installed in 2009.  The Tigo upgrade went live on November 1, 2017 with communication equipment and zero complications thanks to Tigo’s SMART Premium online monitoring platform. Plus, with Tigo’s optimization, this customer can see the Reclaimed Energy recovered and harvested by these optimizers in extra kilowatt-hours. He is then able to calculate the return on his solar investment by day, month, and year. Learn more at https://www.tigoenergy.com/products/#tigo-smart-website.



Results:

Between November 2, 2017 and March 20, 2020, this system produced:

  • 622kWh Reclaimed Energy with Tigo’s optimizers
  • 13.92MWh
  • 18 modules with Tigo’s TS4-A-O (Optimization Add-ons) and Tigo’s Cloud Connect Advanced (CCA Kit)
  • According to the Unites States Environmental Protection Agency’s energy equivalent calculations, this system’s lifetime production of solar energy so far as the Carbon Dioxide Equivalent of:

Carbon sequestered by 238 acres of forests.

Greenhouse gas emissions saved from 79 passenger vehicles driven in one year.

10 metric tons of carbon from coal-fired power plants.

142,831 kettles boiled.










About Tigo Energy
Tigo’s optimization is a Flex MLPE function of Tigo’s UL-system-certified TS4 Platform available as an integrated modular junction box base (TS4-O) or as an add-on unit (TS4-A-O). Design using unequal string lengths, mixed orientations, or areas of mismatch. Install in shaded areas with a reduced setback ratio. Optimize only where needed with selective deployment. The TS4-O and TS4-A-O can either be selectively deployed without communication & monitoring accessories or with communication & monitoring accessories in order to fulfill rapid shutdown requirements. Learn more at https://www.tigoenergy.com/products/#optimization.



The content & opinions in this article are the author’s and do not necessarily represent the views of AltEnergyMag
Tigo Energy

Tigo Energy

Tigo® is a global company founded in Silicon Valley in 2007 that combines a unique systems-level approach with expertise in semiconductors, power electronics, and solar energy. By partnering with tier 1 module and inverter manufacturers in the industry, Tigo is able to provide innovation to cost-effective multivendor PV systems with integrated and retrofitted Flex MLPE as well as communications technology to drive the cost of solar electricity down. After years of research, development, testing, and certification, Tigo brought the revolutionary TS4 Platform to market. Tigo's modular TS4 Platform can be selectively deployed with different functionalities per module at different price points utilizing Predictive IV (PIV) technology to maximize energy harvest at a minimal cost. Tigo offers PV installers, designers, OEMs, EPCs, and system owners the solution that improves return on investment at each level to reduce the O&M cost over the lifetime of any project. Today, Tigo remains the only UL-certified, multivendor MLPE rapid shutdown for residential and C&I. Tigo has operations in the USA, Central & South America, Caribbean, Europe, Japan, China, Australia, South Pacific, and the Middle East.
