Both thin film and crystalline solar technologies provide reliable and impressive energy production performance. While it is well known that amorphous silicon modules suffer lower performance loss in high temperatures and low light conditions, this study reveals that the differing mounting requirements of each system more than offset this cell-type difference. As a result, with commonly-used commercial mounting solutions, crystalline modules actually outperform thin film modules in energy production per rated watt.

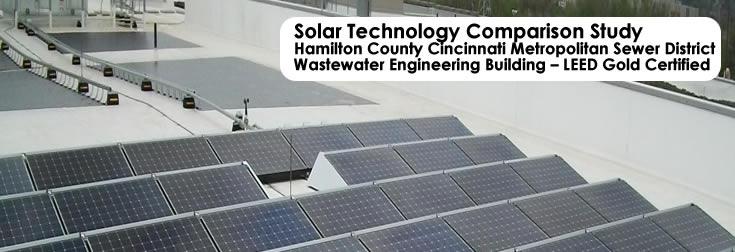

Solar Technology Comparison Study<br>Wastewater Engineering Building - LEED Gold Certified

| Third Sun Solar

Objective

Create publicly accessible comparison project demonstrating both thin film and crystalline solar technologies on the same rooftop with identical system sizes and identical balance of system components.

Project Genesis

Crystalline and thin film solar modules have different strengths and weaknesses, and do not perform equally in the same applications. Which technology is best suited for a particular solar project depends to a large degree on the specific project goals and unique site characteristics.

While reliable, third party performance predictions can easily be obtained for crystalline silicon modules; the same is not true for the various thin film technologies in the marketplace. Customers and solar developers are often left having to extrapolate from marketing claims and a small number of site-specific studies to make predictions about which is the best technology to use for their own project. Factors such as differing orientation and attachment options, different area requirements, and differing technical limitations between crystalline and thin film technologies make the task of translating study results to real-world applications daunting or impossible. As a result, marketing claims from competing manufactures can obfuscate what should be a transparent comparison.

Hence, there exists the need for more independently verifiable, real-world comparison studies of the two broad technology choices as they apply to specific projects types, such as ground mounts, flat roofs, pitched roofs, shade impacted sites, and in different climatic regions.

The Metropolitan Sewer District of Greater Cincinnati approached us to provide approximately 30kW of solar for their new LEED Gold Certified Wastewater Engineering Building in Cincinnati, to be deployed on a flat roof designed to be regularly viewed by the public for its showcase energy and storm water management technologies. This working demonstration site with its flat roof typical of commercial construction and excellent solar resource offered an ideal spot to initiate a Midwest-specific study of two typical solar technology types.

System Specs

The two modules types represent commonly used modules from industry leading manufacturers, UNI-SOLAR and SunPower. Each system employs three SMA-SB-5000US inverters, and apart from the modules and their mounting styles, all other components of the two systems are identical. The systems are located adjacent to each other on a single, newly constructed, white TPO membrane roof. Both systems experience identical shading of 4.16%. Electrical performance and environmental parameter monitoring are performed by SMA Sunny Webbox and Sunny Sensorbox respectively.





Thin film:

15.12 kW composed of (105) UNI-SOLAR PVL-144 laminates, glued flat to TPO membrane Tilt: 0 deg.

Azimuth: 180 deg.

Array footprint: 2,520 sq. ft.



Crystalline:

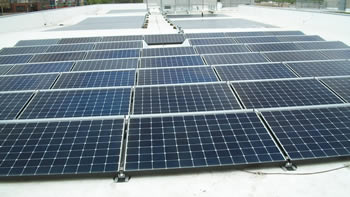

15.12 kW composed of (48) SunPower SPR-315 modules on SunPower T-10 ballasted racking.

Tilt: 10 deg Azimuth: 180 deg.

Array footprint: 1,120 sq. ft.



Project Data

Electrical performance data and environmental conditions for both systems are available to the public here.

Recorded data for each system include:

  • Hourly, daily, monthly and lifetime energy production
  • Hourly, daily, monthly current and voltage data
  • Ambient temperature, cell temperatures, solar insolation and wind speed.

The home page shows the total production of the two 15kW systems combined. Direct comparison of the two systems productions is located here



Results to Date

Both systems were installed at the same time and commissioned in March 2010. The first full month of data production began in April 2010. A crystalline module was cracked during construction and had to be replaced. As a result, the SunPower system operated without one string of modules for the first week of April 2010. Since then, both systems have been 100% operational.

Both systems are exceeding predicted production levels by comfortable margins of 8% and 14% for UNI-SOLAR and SunPower respectively. Performance above predicted values is of limited utility, however, as this depends on the level of aggressive or conservative assumptions used to generate the predictions.

More useful is the data comparing the two systems directly to each other. As shown in Figure 1, over the first 17 months of operation the crystalline system has produced 11% more energy than the thin film.

Figure 1

Because of physical differences, thin film solar cells are generally more sensitive to indirect sunlight, low light conditions and do not lose as much performance with temperature increases as crystalline. As a result, in a side-by-side situation with equal tilt angles in a region of significant cloudiness, indirect sunlight and high temperatures, (such as Cincinnati, Ohio) one would expect the thin film product to outperform a crystalline solar module. Industry expectations are that thin film should outperform by about 5% in side-by-side tests with equal orientations.

However, the predominant method of mounting thin film laminates is to adhere them to the roof in a flat orientation. This results in significantly different sunlight exposures and temperature profiles and makes equal-orientation comparison studies inapplicable. For any solar module, thin film or crystalline, a 10 degree change in tilt can have more than a 5% impact on performance.

This study confirms this expectation.

We expect any solar system’s production to rise and fall with the seasons. Figure 2 shows this monthly variability and also shows that the crystalline system slightly outperforms the thin film system every month except December. December 2010 had high levels of snowfall.

The difference between the systems’ production is greatest in the spring and fall. This is consistent with the expectations that thin film should excel in the low light conditions of winter and the high temperature conditions of summer, whereas crystalline technology excels during spring and fall when direct solar radiation is strong and temperatures are cool.

Figure 2. Monthly energy production (kWh) of each 15.12kW system since commissioning.

However, there are also performance impacts associated with differences in tilt and airspace between the modules and roof for each technology. The SunPower modules have 10 deg tilt and are separated from the roof by between 2” – 12”, with significant open space for airflow around the  modules. The UNI-SOLAR laminate modules are adhered flat against the roof membrane and are in good thermal contact with the upper roof membrane. This zero-tilt, flush mounting arrangement reduces solar insolation capture and subjects the modules to any additional heat that may penetrate the roof’s insulation.

These factors, imposed by the different mounting requirements of each system, have performance impacts that more than offset the side-by-side differences in temperature and light sensitivity of the two technology types.

The MSD building on which these systems are located is newly constructed to LEED Gold standards, so the amount of heat escaping the building into the thin film modules should be close to the minimum possible for current commercial construction. Unfortunately, the cell temperature probes used in this study did not perform correctly for the first several months, so we do not yet have sufficient temperature data to examine these effects quantitatively.

UNI-SOLAR now manufactures a tilt system for their PVL thin-film laminates that addresses these issues. Nonetheless, the predominant method of application to date has been flat-adhered. As with any ballasted racking system (for crystalline or thin-film), this approach requires additional weight for ballast and necessitates spreading the modules apart to avoid inter-row shading. Thus, the tiltsystem has the net effect of mitigating one of UNI-SOLAR 's primary advantages, that of low structural loading, while only increasing it’s primary weakness: that of lower power-density and the need for greater array footprint and longer wire runs.

Most important to customers and solar developers is how much energy per unit of capacity each type of system will generate. This is the specific yield (kWh/kW/yr) and it allows systems of different sizes to be easily compared. Converting the lifetime total production numbers to specific yields results in the following values shown in Figure 3.

Figure 3. To date, SunPower has produced 1,403 kWh/kW/yr. UNI-SOLAR has produced 1,266 kWh/kW/yr.

The dataset is still of too short a duration to use these specific yields for their absolute value since the data covers two summers and one winter. However, their relative values are quite useful. Specific yield for the crystalline modules on a 10-degree tilt racking system is 11% greater than that of amorphous silicon modules mounted flat and adhered to the roof membrane.

PV performance modeling for the MSD site predicts that simply increasing tilt angle from 0-deg to 10 deg will result in a 7.4 % performance boost for the same module type. The actual performance data to date shows the tilted system exceeding this expectation by 3.6%.

That the tilted crystalline system has performed 3.6% better than would be expected from geometrical differences alone, stands in stark contrast to the commonly held expectation that the thin film should produce more kWh/kW/yr in side-by-side, equal orientation tests.

This difference may be attributable to heat effects from the building, variations in the weather from long-term averages, and physical differences between the different solar cell types. Longer-term study and further analysis of the environmental data will help determine the magnitudes of each of these effects.

Conclusion

Both thin film and crystalline solar technologies provide reliable and impressive energy production performance. While both solar cell types perform best in cool temperatures and high sunlight, amorphous silicon modules suffer lower performance losses than crystalline during low light or high temperature operation. However, the performance impacts imposed by the different mounting requirements of each system more than offset this cell-type difference. This real-world study shows a significant annual production advantage of a tilted crystalline system over a flat-mounted thin film system. Additionally, amorphous silicon modules require significantly more area than crystalline modules for arrays of the same total power output. These two factors combined, higher energy production per installed kW and smaller array footprint, suggest that crystalline technology is the preferred choice for commercial flat roof applications in which available space and maximum total system size or maximum energy harvest per installed kW are important project parameters.

Acknowledgements

This project was made possible by the tremendous support of:

Metropolitan Sewer District of Greater Cincinnati
Wastewater Treatment Division
1600 Gest St, Cincinnati, OH 45204

The City of Cincinnati
City Facility Management
1408 Queen City Ave, Cincinnati, Ohio, 45202

Hamilton County, Ohio

Cintech Construction
4865 Duck Creek Rd, Cincinnati, Ohio, 45227

KZF Design

700 Broadway St, Cincinnati, Ohio 45202
